 Ed's 64 IH 1 ton body swap
Author Message
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Ed's 64 IH 1 ton body swap
Time to swap the beat up body on my truck, found one in a self serve wrecking yard last May. It's at the sand blaster now.

Started taking the cab apart to get ready for the new one to go on.

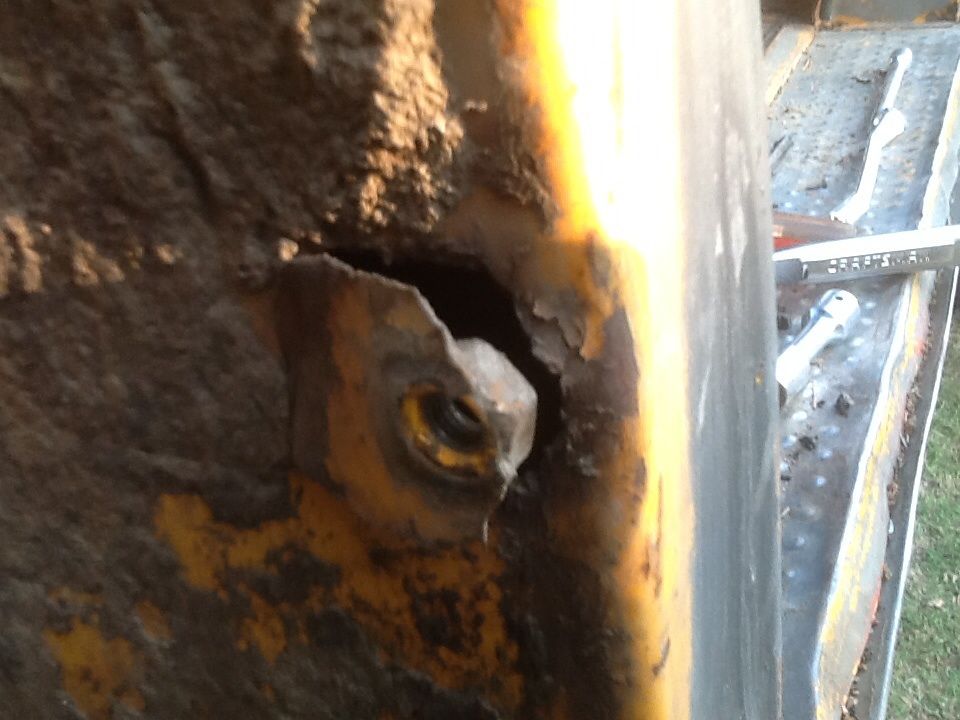

Door hinge bolts, only one broke off out of eight removed so far.

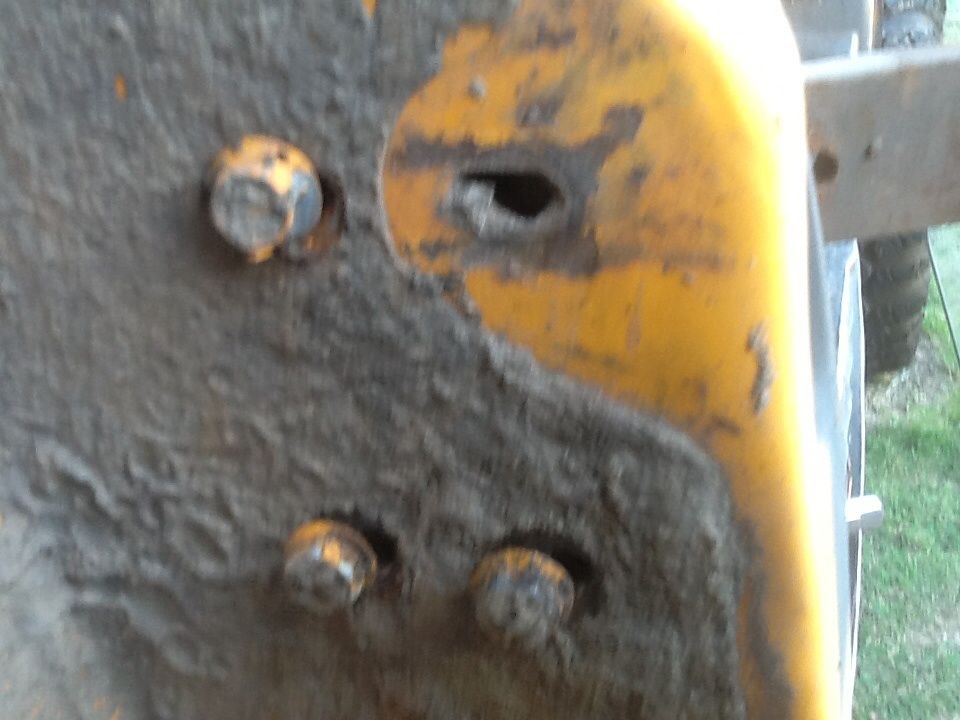

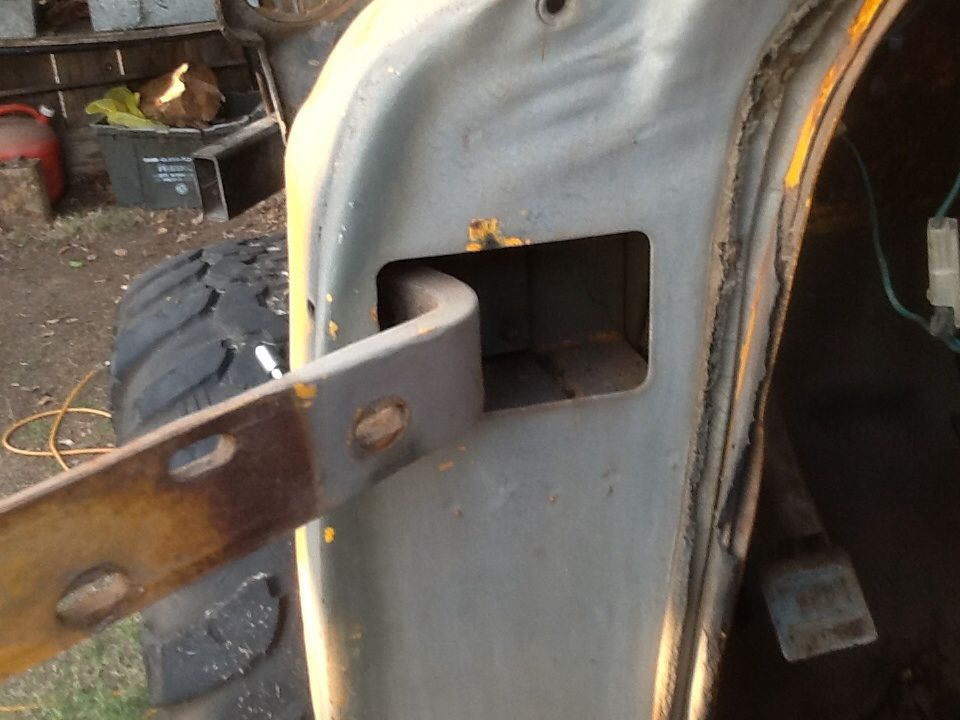

Fender mounting.

I believe this damage was done by the tree that fell on it.


Wanted to have a reference for where I have all my doodads.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


Last edited by Big Ed on November 9th, 2014, 9:01 pm, edited 1 time in total.



November 9th, 2014, 8:48 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Here you can see my truck in the background.



_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 9th, 2014, 8:56 pm
Profile
Friend of UC4x4
User avatar

Joined: May 7th, 2007, 5:13 pm
Posts: 2109
Post Re: Ed's 64 IH 1 ton body swap
looks likw a pretty good project for the winter. I've seen your truck in fresno. that thing is a beast

_________________
Wolfpack member #3

Living the dream


November 9th, 2014, 10:37 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Ed's 64 IH 1 ton body swap
How excited were you to find one of those in the junkyard? The new one is rusty but it doesn't look terminal. Any other upgrades, mods or do-overs planned while things are apart?

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


November 10th, 2014, 11:58 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Excited enough to know that I needed to jump on it, especially with the condition it's in. The floorboards are surface rust, the only deep rust I saw was two small spots, one on each side of the front of the cab under the hood when closed. The old one is a lot worse in those same spots.

Will be reinforcing the cab in spots I already know to be problem areas, the back cab mounts and the back of the door jambs crack under the pressure of flexing on the trail. The main thing will be to make everything functional again, the doors don't close and stay closed very well, the windshield opening is damaged and leaks.

Having everything apart will mean it's serviceable too, won't be 50 years of rust to fight. I will be putting new pins in the door hinges, mine are sloppy. On the new cab two hinge pins were already broken, I found a source for new pins and already started drilling out the old ones.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 10th, 2014, 1:33 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Ed's 64 IH 1 ton body swap
Nice, sounds like a good project, and like you said a great time to address other things when the drivetrain is easily accessible.

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


November 11th, 2014, 5:26 pm
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Yeah, I plan on cleaning it and looking everything over good. There will be areas I can't see otherwise, I plan on taking pictures of the dual transmission set up too. Right now the doors and fenders are off of both sides, will start taking the stuff off the front of the cab tomorrow.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 12th, 2014, 12:00 am
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap






_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 12th, 2014, 12:05 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Will be able to clean and work on the frame easier now.


Removed steering column.

Removed parking brake.

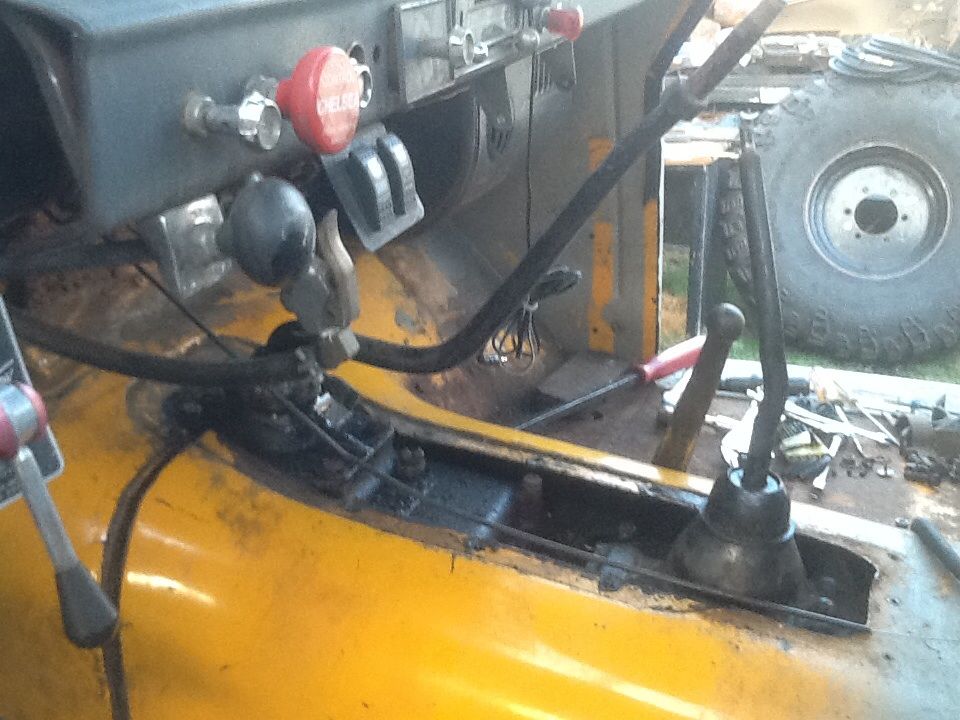

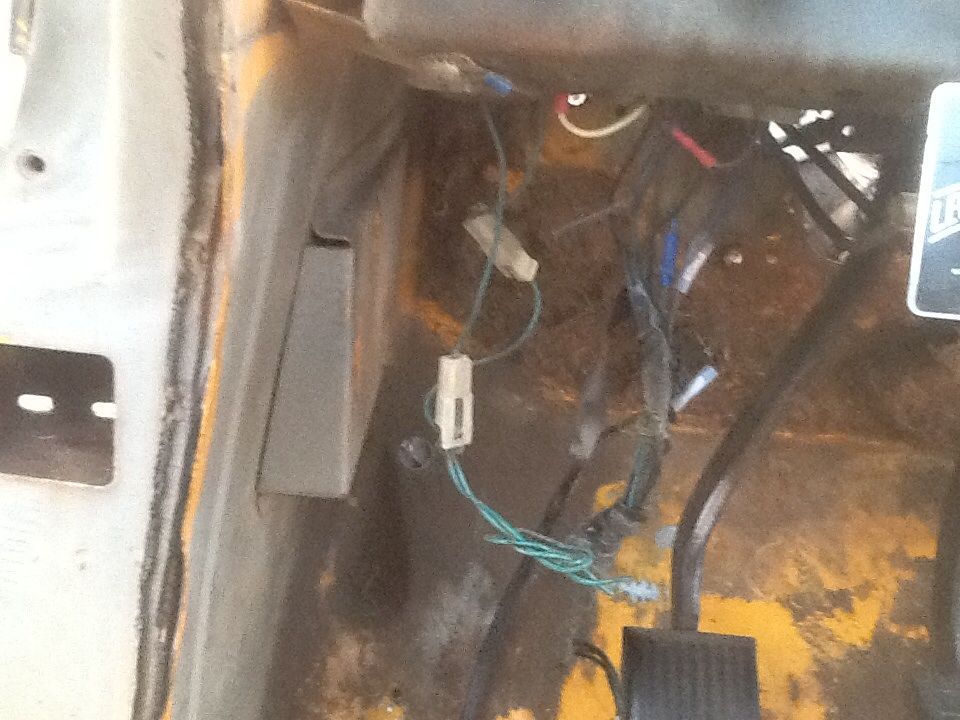

This shows what I had to do to accommodate the 5 speed, the tc shifter originally came out of the round hole in the side. There wasn't room to do that with the wider transmission, so I made a hole and brought it through the floor.

Since the new cab is 2wd I will reference these pictures to make this hole.

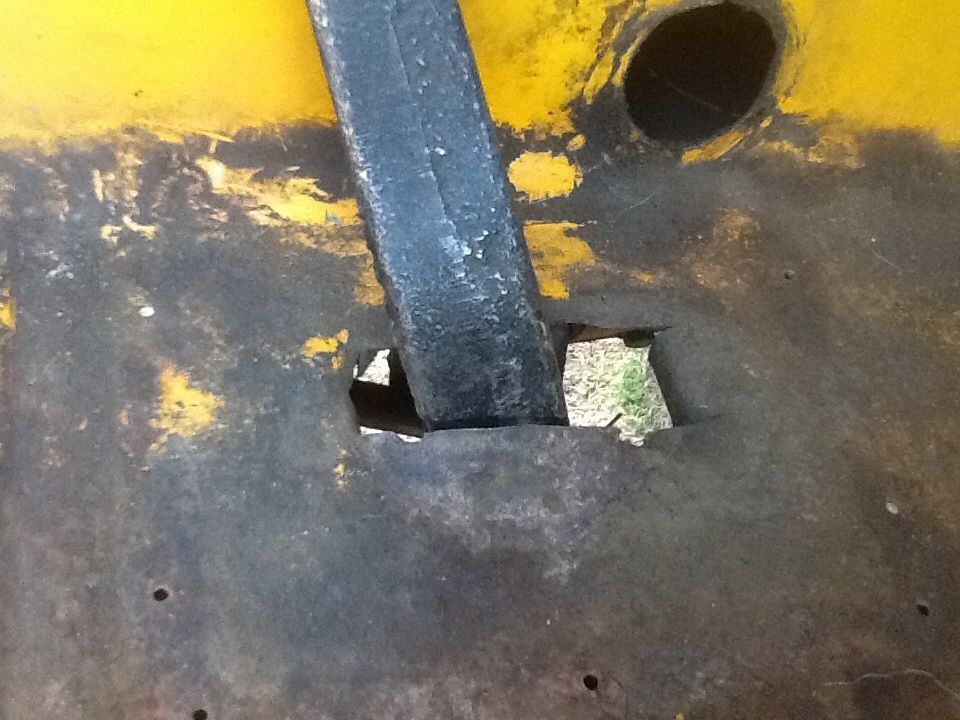

This shows how the elongated hole had to be lengthened to allow for the second transmission.

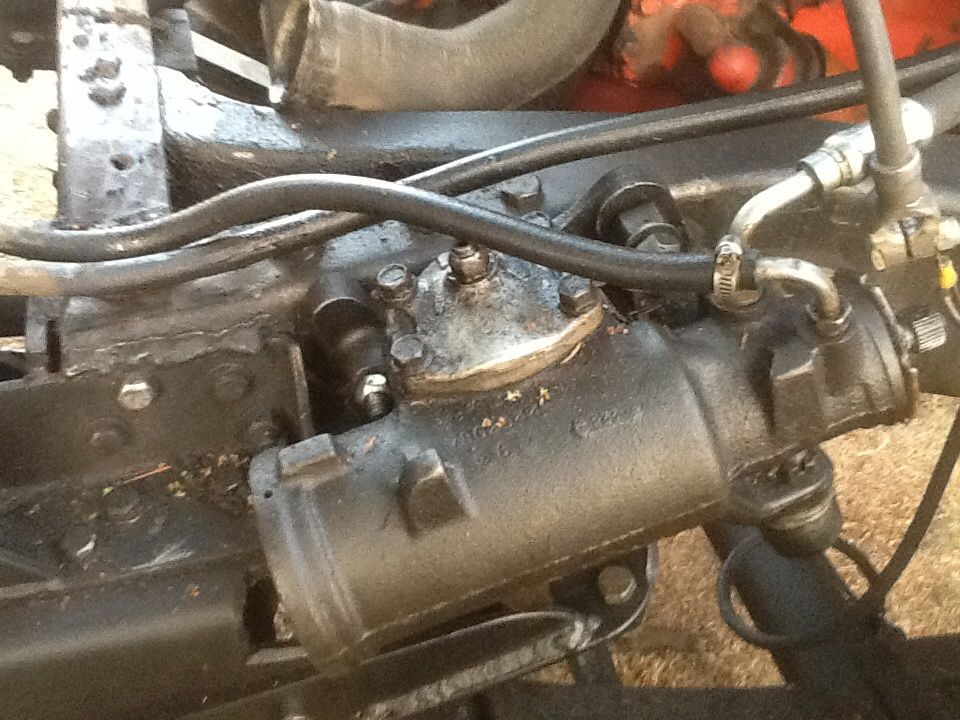

I am going to add plate to the frame where the steering box mounts, this will be much easier now.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 12th, 2014, 6:30 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Ed's 64 IH 1 ton body swap
Looks like there's some frame repair in your future! What motor is in there? IH? 345? For some reason I thought you had a SBC in it but the port spacing is wrong on the exhaust manifold (among other things).

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


November 13th, 2014, 11:57 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Dan90FSB wrote:
Looks like there's some frame repair in your future! What motor is in there? IH? 345? For some reason I thought you had a SBC in it but the port spacing is wrong on the exhaust manifold (among other things).


Yes a couple cracks in the front of the frame, not too bad.

345, I'm not a fan of swapping in non IH stuff.

Yeah, 345 doesn't look anything like a 350 .

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 13th, 2014, 1:01 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap


_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 13th, 2014, 8:45 pm
Profile
UC4x4 Member
User avatar

Joined: June 11th, 2007, 11:43 am
Posts: 10563
Location: Tracy, CA
Post Re: Ed's 64 IH 1 ton body swap
I love how its all metal and super simple.

_________________
Early "CLASSIC" Bronco ower. {o===o}
The NEW best truck weight guesser guy!


November 14th, 2014, 11:07 pm
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap
Me too.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 15th, 2014, 10:09 am
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Ed's 64 IH 1 ton body swap





_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


November 15th, 2014, 6:52 pm
Profile
