Post Wrecking yard hoist build

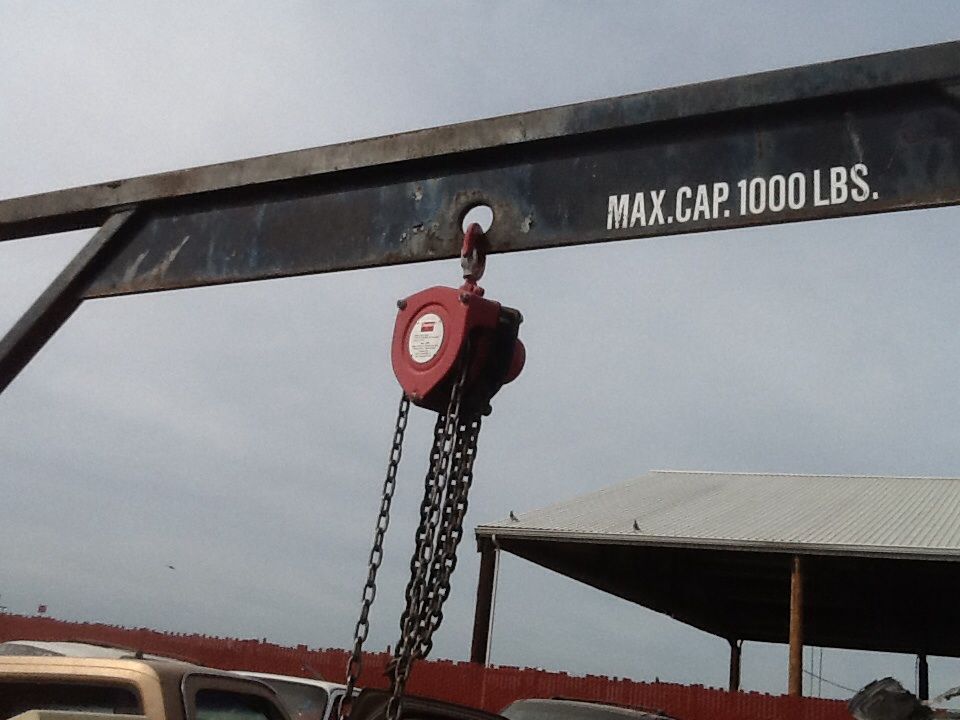

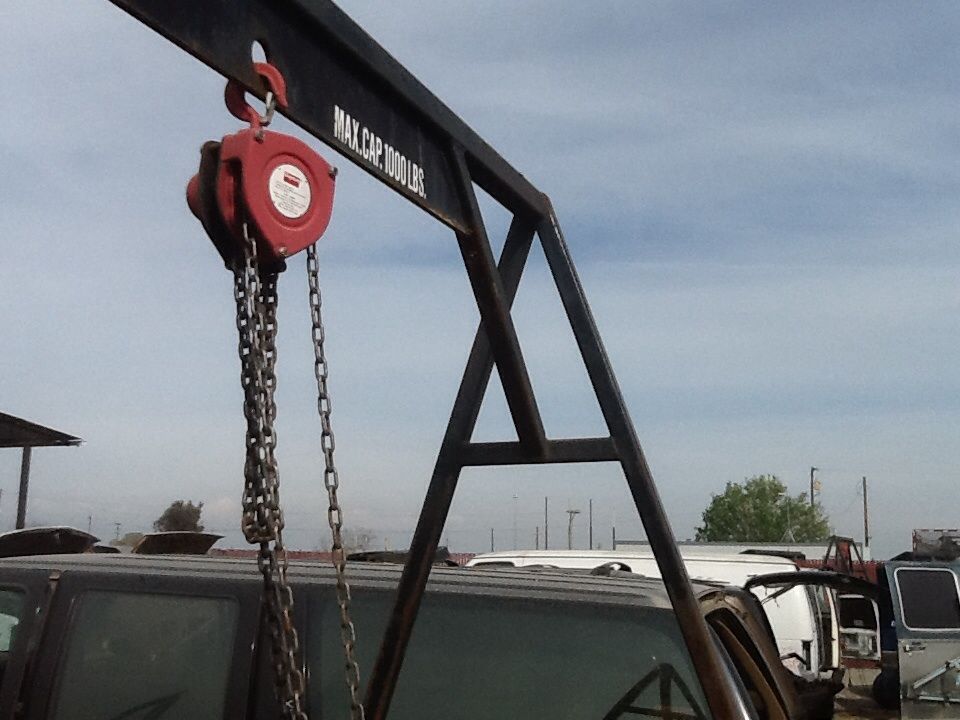

I've been thinking about building one of these things for some time, took some pictures today.

I have a chain hoist already, the material isn't hard to come by.

I need to know what type of spindle components they used, so I know what to search for.

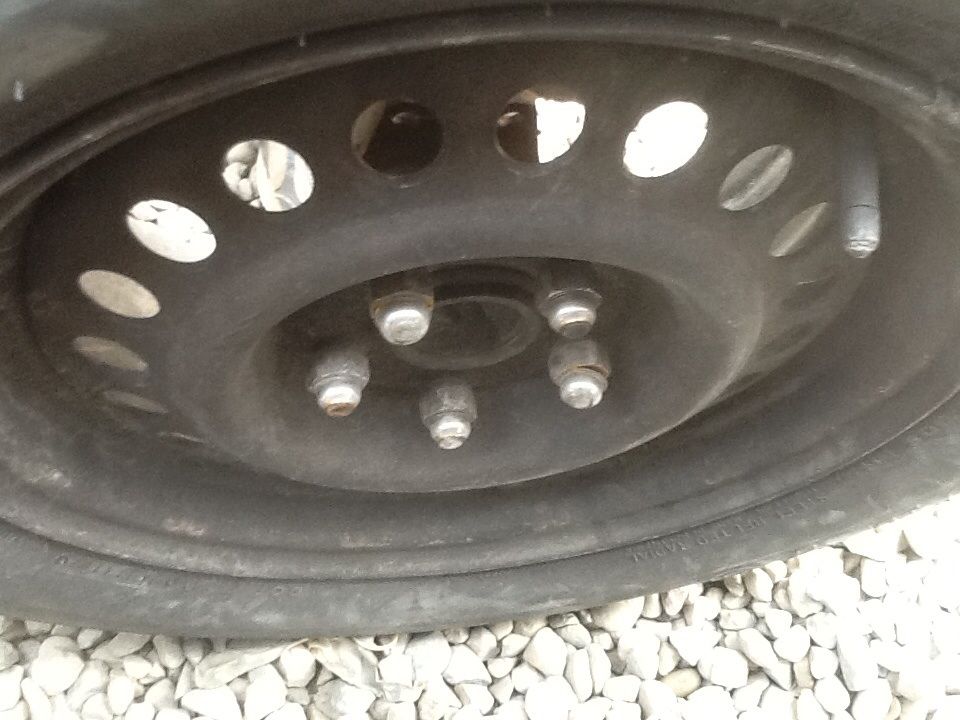

They used the little donut spares.

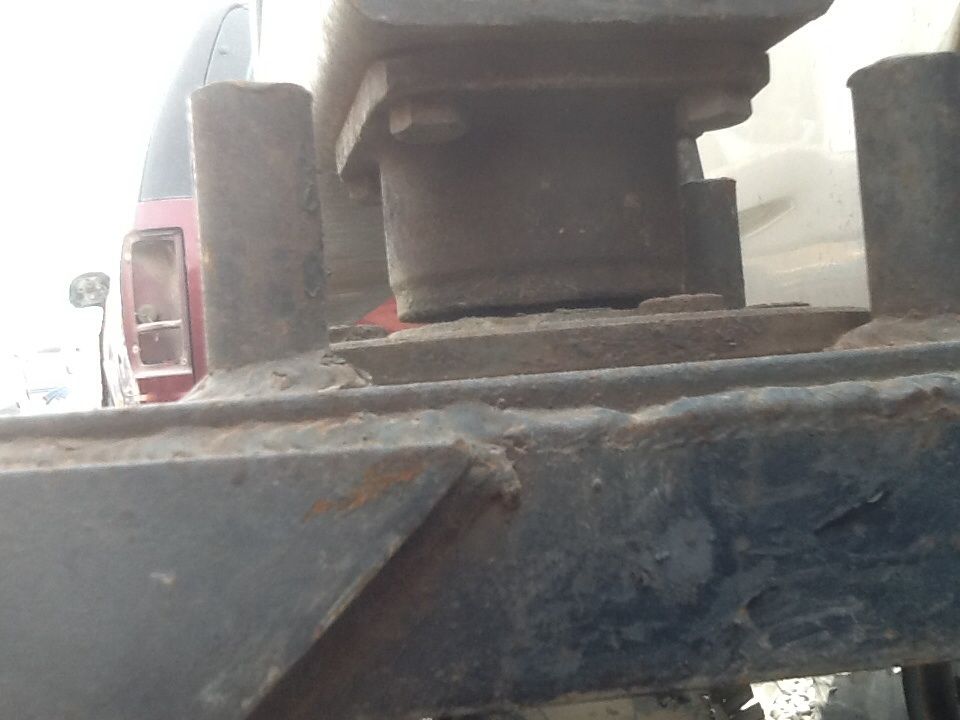

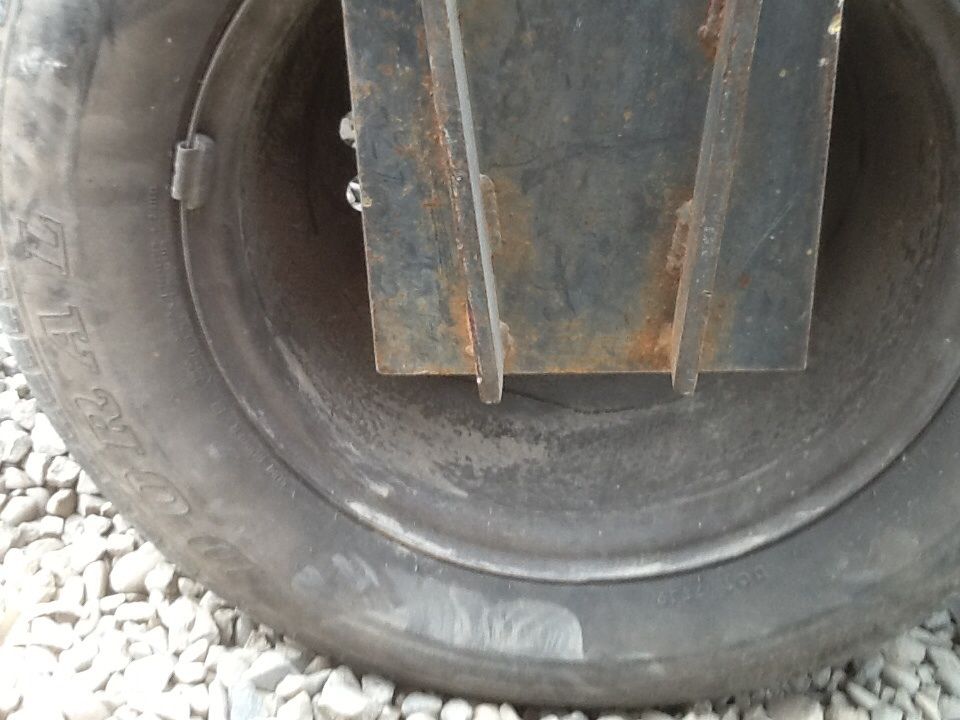

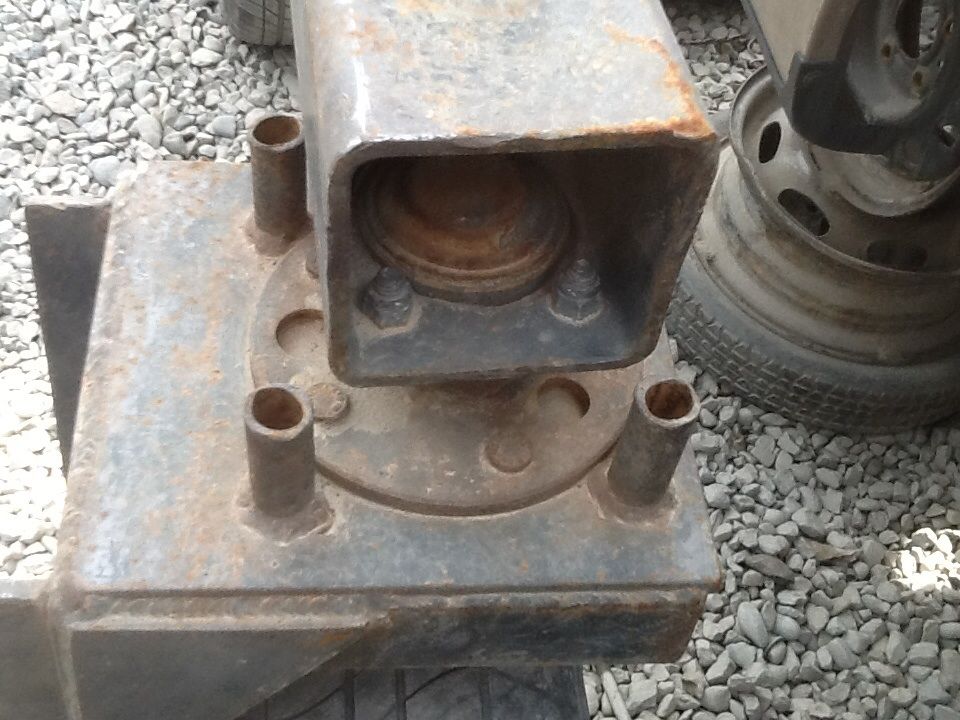

I didn't get a good look at the wheel hub/spindle, will look better next time.

Having one of these will really help with my truck project, it was easy enough to dump the old cab over the side. Putting on the new one needs to be done more carefully.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 17th, 2015, 5:00 pm
Profile
User avatar

Joined: February 5th, 2015, 10:01 am
Posts: 747
Location: Hercules, Ca
Post Re: Wrecking yard hoist build
Those gantry cranes are worth their weight in gold.

As for the spindles id be getting honda civic stuff since its nearly free and plentiful.


March 17th, 2015, 6:34 pm
Profile
UC4x4 Member
User avatar

Joined: November 11th, 2007, 11:47 pm
Posts: 3601
Location: Livermore
Post Re: Wrecking yard hoist build
They look like little light duty unit bearings. I know some fwd minivans have trailing arm rear suspensions with unit bearings like that. Probably the same setup on the rear of fwd cars too.

_________________
-Rick
'95 Bronco soapbox derby edition.


March 17th, 2015, 9:00 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
That's what I was thinking too. I plan on going back with notepad, pen, and tape measure to jot down stuff. Will look at the rear of front wheel drives while I'm there. I want to put the bed back on my truck to see what PTO driveshaft clearance issues I have before drilling for the pillow block mounting. It's too heavy for the help I have around the house, will have to lift the cab one of these days too.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 17th, 2015, 9:47 pm
Profile
UC4x4 Member
User avatar

Joined: February 28th, 2007, 7:47 pm
Posts: 10153
Location: bay area
Post Re: Wrecking yard hoist build
thank you google, kinda looks like a rear dodge minivan unit bearing:

http://www.am-autoparts.com/Dodge/Carav ... 58409.html

_________________
Lifted '89 Ford Bronco 5spd SAS - Representing Ford's I6 Stump Pullers! :thumb:
90% of my truck is covered by AutoZone's lifetime warranty! Too bad the gas isn't...
• Keep our trails open! • KI6ZFQ •


March 18th, 2015, 2:28 pm
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

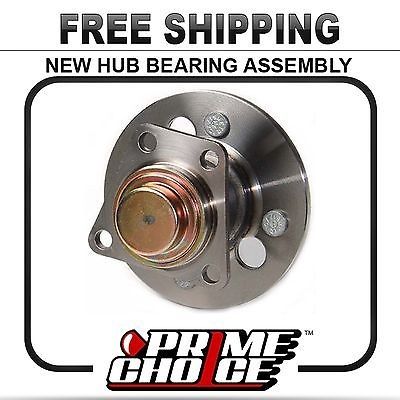

I found this online, it's $22.31 including shipping. It's the one they bolted the wheels to, and fits a Saturn (except this one is 4 lug). Found them at the wrecking yard today, they wanted $22 and change, $2 core, and tax. I said why would I pay more for a used one, they just looked at me funny.

This looks like the one they used to allow the wheels to swivel around and go in different directions, fits a Chevy Lumina, and a few other GM cars. This one will still be a couple dollars more than the wrecking yard price.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


Last edited by Big Ed on March 19th, 2015, 8:12 pm, edited 2 times in total.



March 19th, 2015, 8:03 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
chexmix wrote:
thank you google, kinda looks like a rear dodge minivan unit bearing:

http://www.am-autoparts.com/Dodge/Carav ... 58409.html


The Dodge ones I saw at the wrecking yard had a gear sticking out the back.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 19th, 2015, 8:06 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
I have a friend offering me 3/8" I beam, 4" wide and 4.5" tall, he has a piece longer than I need. The ones at the wrecking yard didn't use I beam, but I'd rather go that way. Then I can use a trolley. I already made a list of most of the materials I need, and will try to make it to the scrap yard tomorrow.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 19th, 2015, 8:25 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Wrecking yard hoist build
the best / worst of made in china parts... when they cost less than used ones at the junkyard...

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


March 20th, 2015, 7:54 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
Dan90FSB wrote:
the best / worst of made in china parts... when they cost less than used ones at the junkyard...


You're probably right.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 20th, 2015, 8:56 am
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
Got some parts, materials, and some work done today.





_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 20th, 2015, 6:03 pm
Profile
UC4x4 Member
User avatar

Joined: February 28th, 2007, 7:47 pm
Posts: 10153
Location: bay area
Post Re: Wrecking yard hoist build
Can I just order one of these prefabbed from you? :D

_________________
Lifted '89 Ford Bronco 5spd SAS - Representing Ford's I6 Stump Pullers! :thumb:
90% of my truck is covered by AutoZone's lifetime warranty! Too bad the gas isn't...
• Keep our trails open! • KI6ZFQ •


March 20th, 2015, 10:36 pm
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
Ha! I need to get on to my truck project, seems I need to do projects just to do my project. Yesterday I built a taller base for my material support stand, so I can use it with the drill press. I had already made a lower one for the saw. Instead of making an entire new stand, I just made a new base.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 21st, 2015, 8:54 am
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

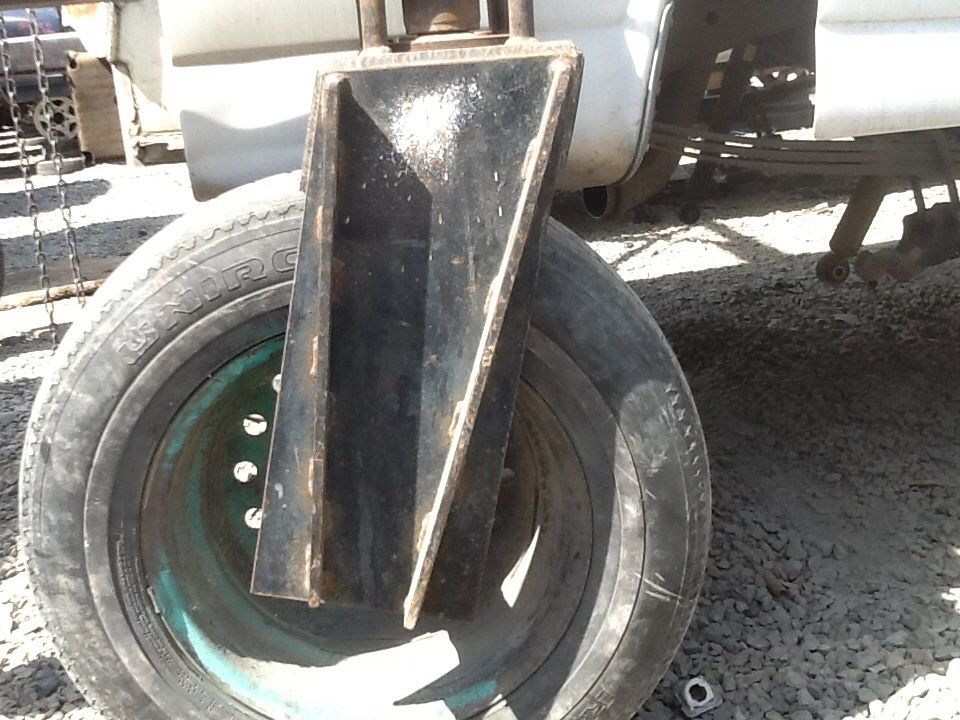

Went back, took more pics and measurements. I think I got everything I need now.

These are angled back 14 degrees, left on one side, right on the other side.

They welded in a 3-1/4" long spacer.

Turns out they didn't use the donut spare after all. Well I got them now, we'll see how it works out.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 21st, 2015, 12:24 pm
Profile
User avatar

Joined: February 5th, 2015, 10:01 am
Posts: 747
Location: Hercules, Ca
Post Re: Wrecking yard hoist build
Looks good so far! I wish I had the space for one of those. That and a forklift.

I think the donut tires are perfectly fine for what you're using for. Just dont get the crane above 70 mph and you should be good. :lol:


March 21st, 2015, 3:37 pm
