 Wrecking yard hoist build
Author Message
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
I hole sawed and drilled the other 4" square tubing today, then spent some time cleaning the garage. It was too cluttered for what I'm trying to do. Next I'll be hole sawing/drilling the plates that bolt to the same spindle, got them cut already.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 21st, 2015, 7:29 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Wrecking yard hoist build
Big Ed wrote:
seems I need to do projects just to do my project.


Truth.

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


March 23rd, 2015, 6:54 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

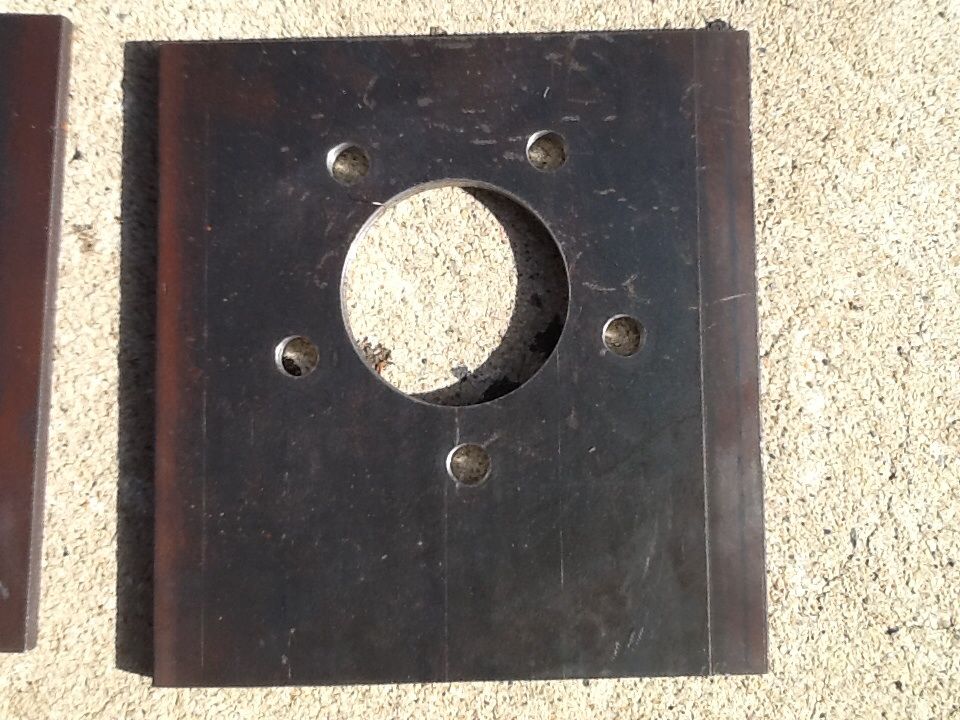

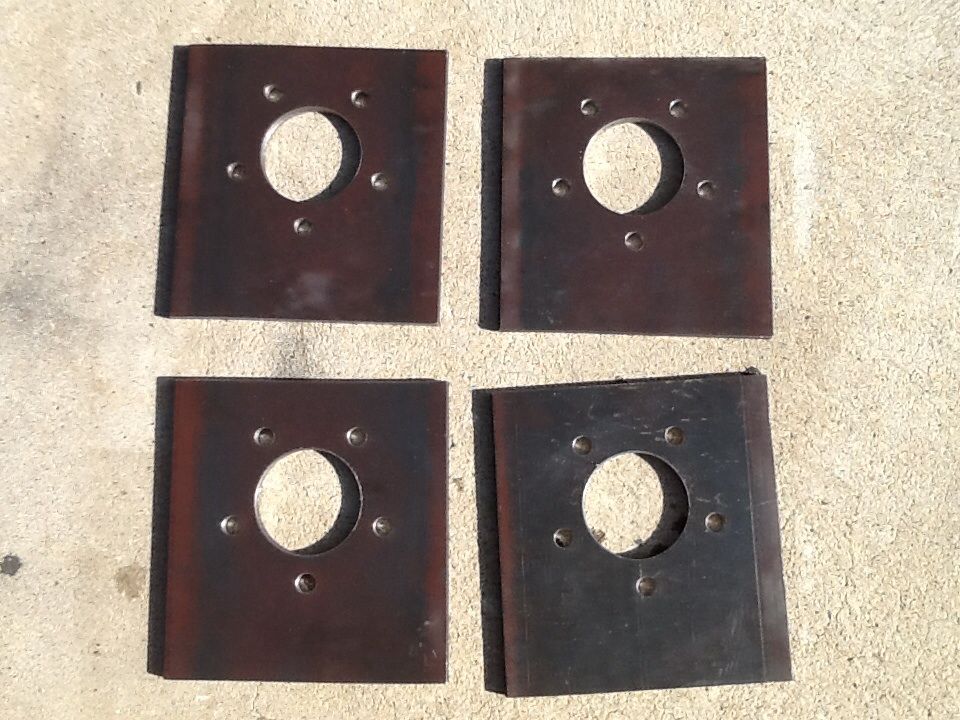

Got these plates done.


Also cut the four pieces that will extend down from these, they're cut at a 15 degree angle to kick the wheels back some.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 23rd, 2015, 7:15 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
Got some more metal today. I got 2-1/2" square tubing with 1/4" wall, to rise up to make the A. They used 2", don't know what wall thickness. Two of the cranes at the wrecking yard were bent. Don't know what they did to bend them, but still wanted to go a little heavier. At first I asked for 2" square tubing with 3/8" wall, they only have up to 1/4" wall in that small of tubing.

I went to the scrap yard first, they had 1/4" wall round tubing that could be used to extend out the spindles the wheels bolt to. About .04" would have to be bored out of the inside. I know people with lathes, that's not a problem. Not sure 1/4" wall is heavy enough though, it will be right at 1/4" after boring. The yard with the new steel didn't have any remnants that size, and I don't want to buy 10 feet to get 14".

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 24th, 2015, 4:38 pm
Profile
UC4x4 Member
User avatar

Joined: November 11th, 2007, 11:47 pm
Posts: 3601
Location: Livermore
Post Re: Wrecking yard hoist build
Those cranes at capacity see 1000 lbs, plus probably 600 more for the hoist weight. That means each corner sees 400lbs. Totally within the strength of 1/4" wall tubing. Weld a gusset up to it for extra strength.

_________________
-Rick
'95 Bronco soapbox derby edition.


March 24th, 2015, 11:34 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

The trolley showed up too big for the I beam. It has 4" diameter wheels, the I beam is 4-1/4" tall. I will see if I can find a taller I beam before trying to return the trolley. Got more cut today too, but no pictures yet.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 26th, 2015, 8:39 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Wrecking yard hoist build
Dig that saw.

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


March 27th, 2015, 6:48 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

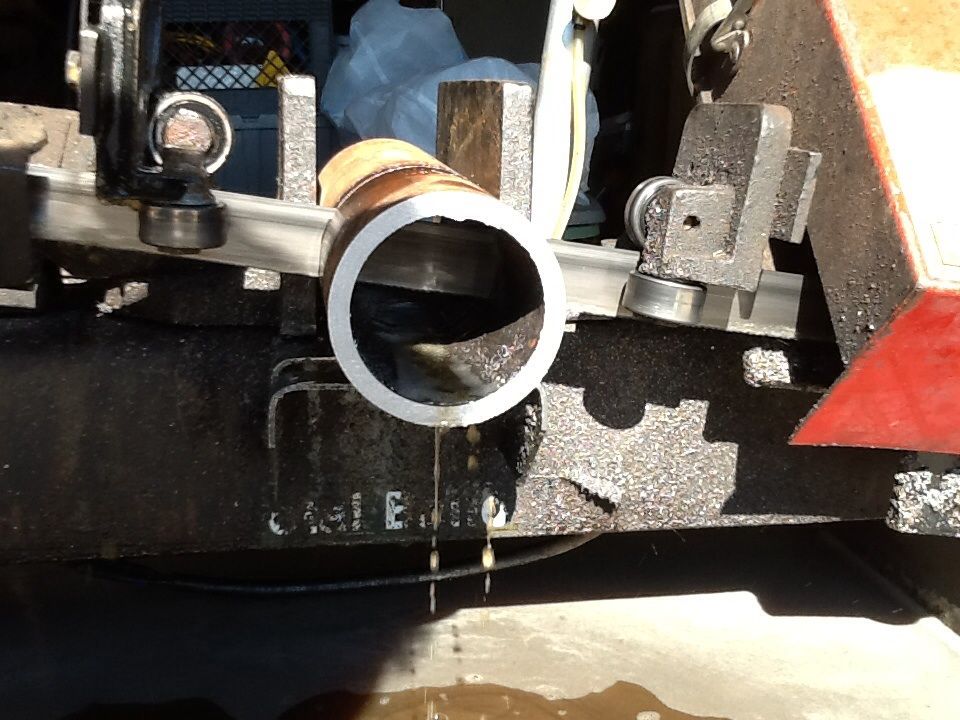

I really like my saw. It does all the work, and I just keep an eye on it. I can't run coolant on long pieces because it will just run all the way down the end and drip off the end, but I run it when I can.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 27th, 2015, 8:06 am
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

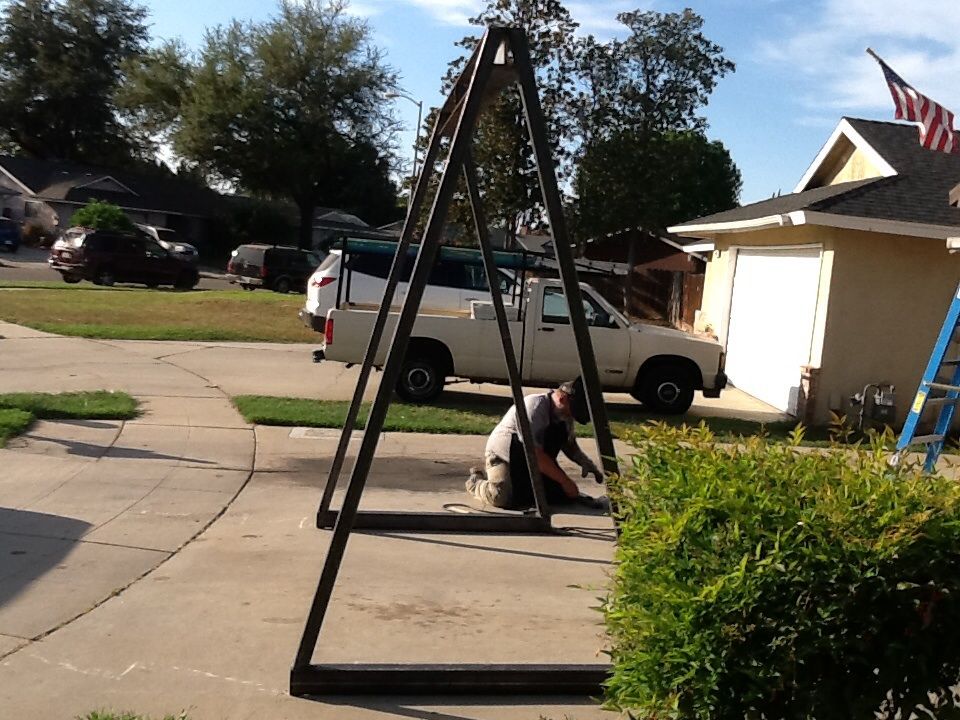

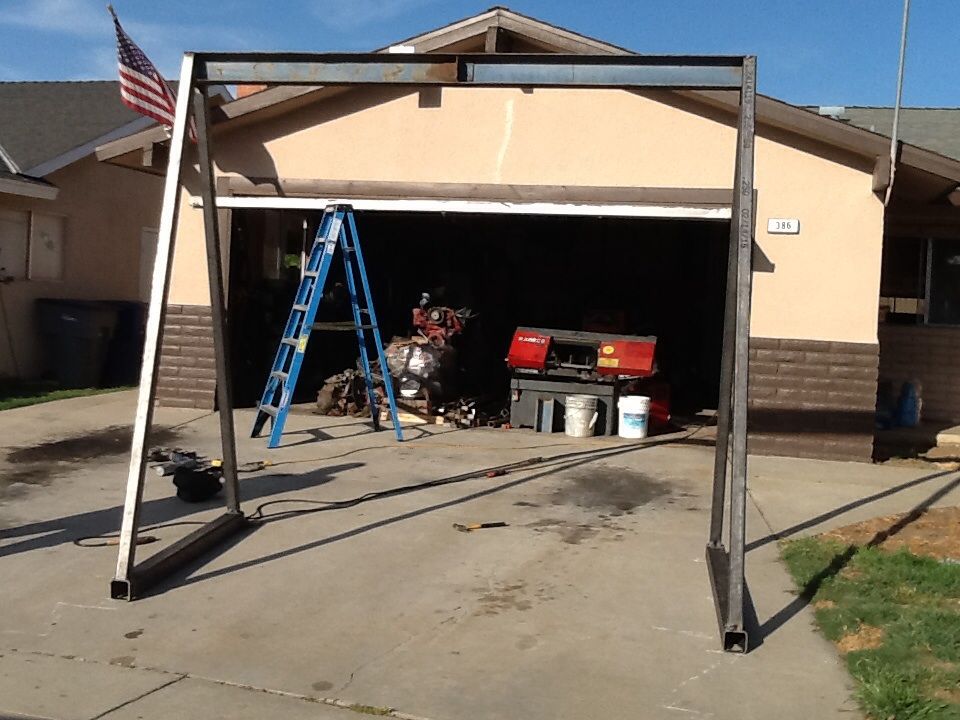

Got some progress done, my sons helped.

Already have horizontal supports a little below the I beam too, no pictures.

I'm not a welder by trade. I'm a machinist, but I think it should hold.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 28th, 2015, 8:51 pm
Profile
UC4x4 Member
User avatar

Joined: June 11th, 2007, 11:43 am
Posts: 10563
Location: Tracy, CA
Post Re: Wrecking yard hoist build
I made something similar at an old job for rebuilding massive gearboxes. I made it to where i could take it apart for storage or transport. Just made a base everywhere a met another tube than drilled a 1/2 hole through everything once assembled. It was nice because two weeks later we moved lol

_________________
Early "CLASSIC" Bronco ower. {o===o}
The NEW best truck weight guesser guy!


March 29th, 2015, 8:56 am
Profile WWW
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
It can be moved, just not as easy. We took it into the backyard with a garden wagon and a floor jack, with it laying on its side.

I took the 4 pieces of tubing to a friend to bore clearance for the hubs, just a while ago.

_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 29th, 2015, 12:14 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build
Snapped a couple more.

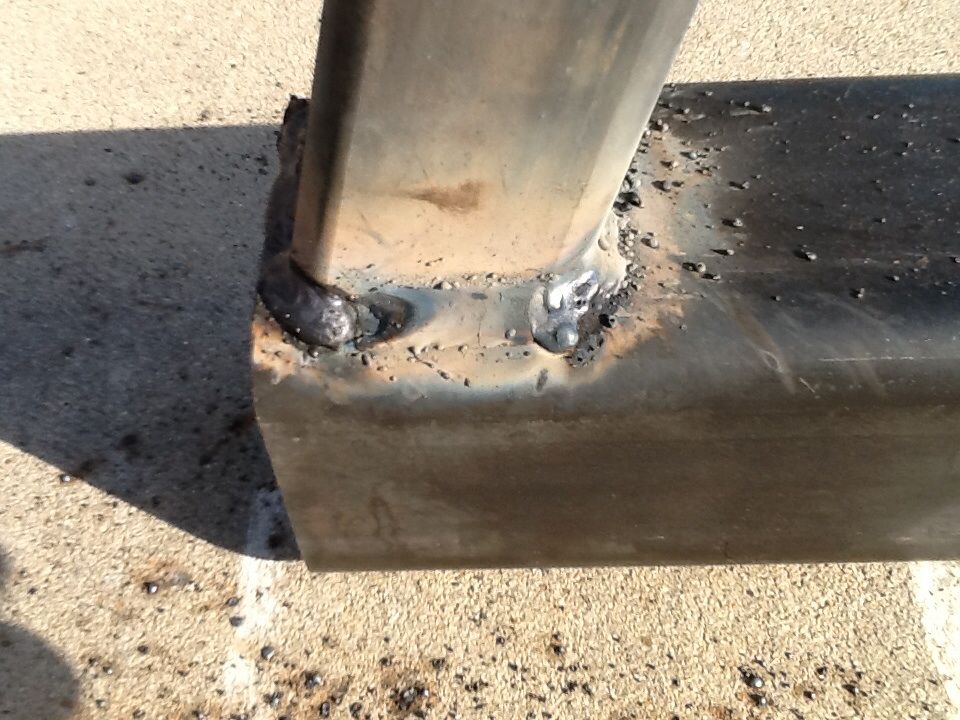

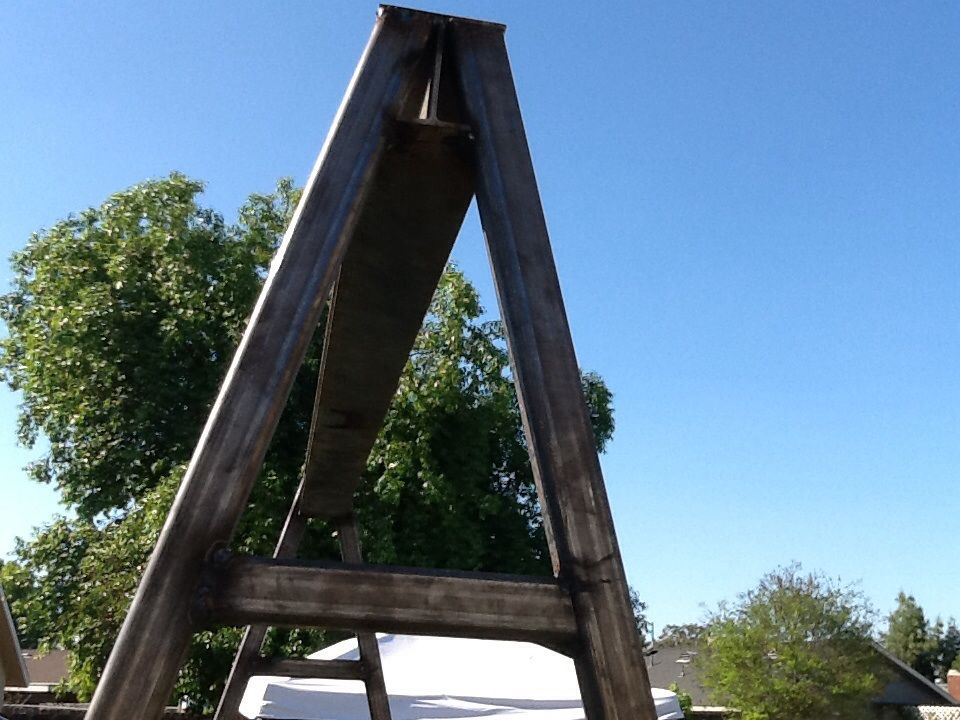

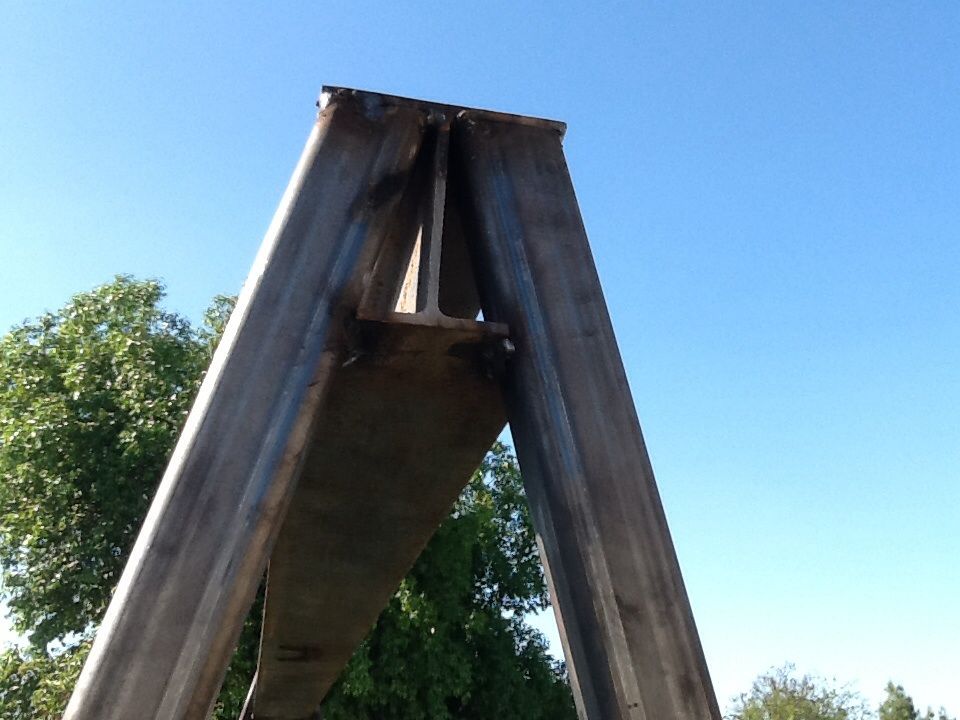

This shows how it's tied in, still a little more welding to do. I wanted to tie in to the vertical part of the I beam, but it wasn't really in the cards.

Started welding on this before I put the A frame together.


_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


March 29th, 2015, 3:22 pm
Profile
User avatar

Joined: April 13th, 2014, 7:15 pm
Posts: 1888
Location: Fresno, CA
Post Re: Wrecking yard hoist build

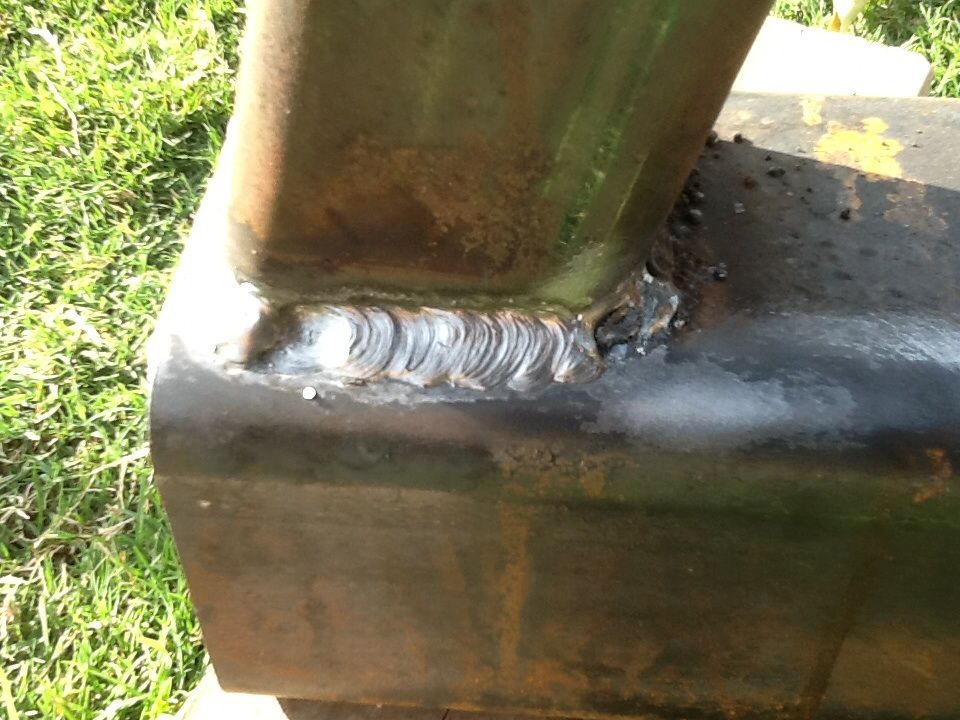

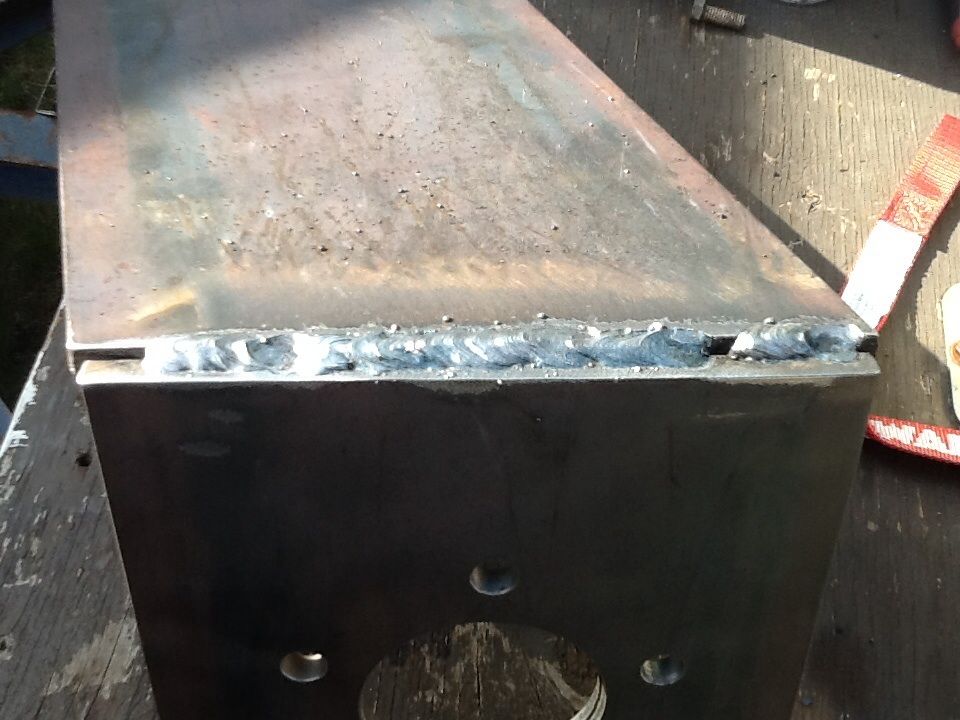

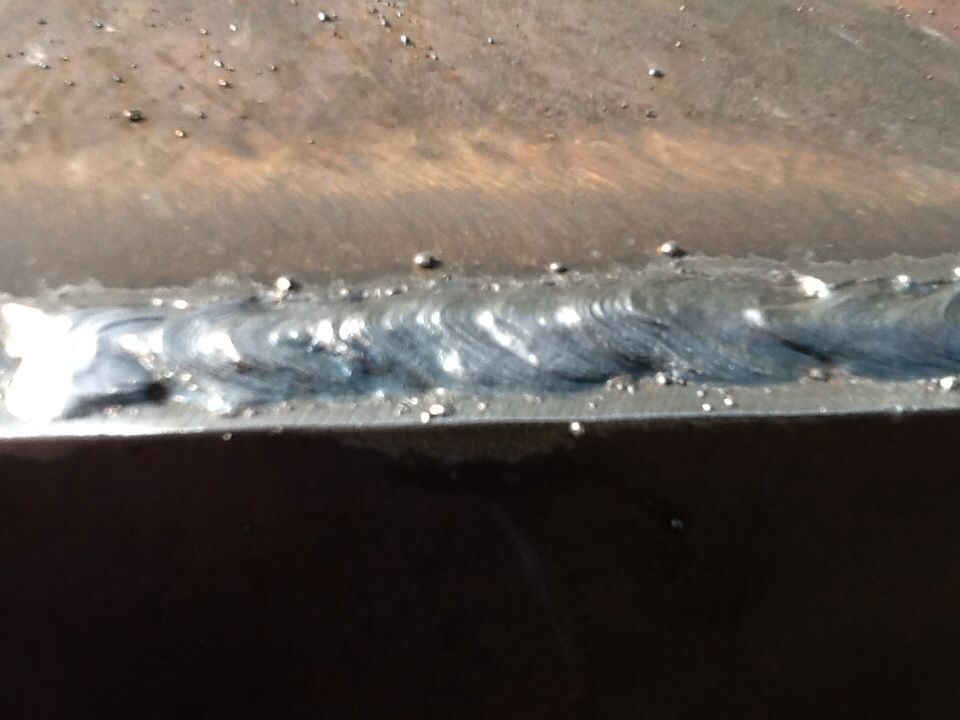

Cleaned off the slag so I could see how the welds turned out.

I usually have someone else do my welding, but coordinating that has got more difficult.


_________________
1964 International 1ton, D70F ARB, RA15 Detroit Locker, dual transmissions, 375:1 crawl ratio, 41" Iroks, flat bed.


April 6th, 2015, 7:18 pm
Profile
UC4x4 Member
User avatar

Joined: September 25th, 2006, 8:46 pm
Posts: 12641
Location: San Jose
Post Re: Wrecking yard hoist build
Welds look fine, I doubt they're going anywhere.

_________________
"He who exercises government by means of his virtue
may be compared to the north polar star, which keeps its place and all
the stars turn towards it."

- Confucius


April 6th, 2015, 8:24 pm
Profile WWW
UC4x4 Member
User avatar

Joined: February 28th, 2007, 7:47 pm
Posts: 10153
Location: bay area
Post Re: Wrecking yard hoist build
I'm so spoiled using gas now, cleaning slag makes me a sad panda.

_________________
Lifted '89 Ford Bronco 5spd SAS - Representing Ford's I6 Stump Pullers! :thumb:
90% of my truck is covered by AutoZone's lifetime warranty! Too bad the gas isn't...
• Keep our trails open! • KI6ZFQ •


April 6th, 2015, 9:58 pm
Profile WWW
